Vik

VoIP Call Panel

Vik is a rugged VoIP call panel designed for fast, maintenance-friendly installation in demanding environments. Its patented wedge-mounting system enables secure installation without screws.

Request a Quote

Key features

Fast Installation

Patented wedge-mounting system enables quick installation without screws.

Maintenance-Friendly Design

Designed for easy access and efficient maintenance in demanding environments.

Clear & Loud Audio

High-quality microphone and speaker ensure clear and loud communication.

Rugged Construction

Impact-resistant polycarbonate housing designed for demanding industrial and transport environments.

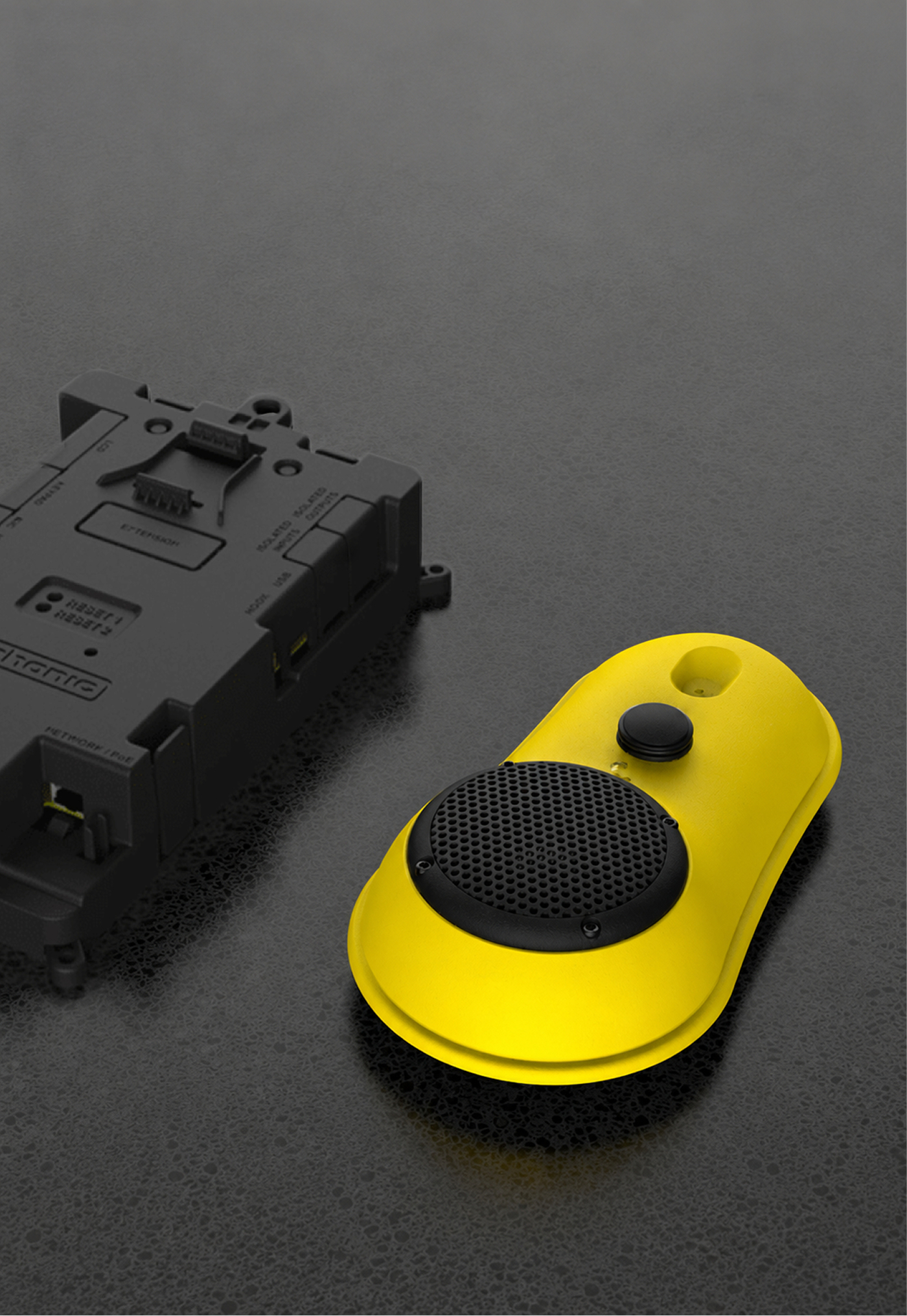

Norphonic VoIP panel phone assembly Vik Call Panel

Assembling a Vik call panel with a Holme base produces a panel phone which can be used in a wide array of applications. The only requirements are for the panel to have a rectangular cut-out contour. Please refer to our manual for more assembly details.The element uses high quality microphone and speaker, designed and tested for rugged environments. The speaker element assures clear and loud audio transmission.

‍

‍

Vik features a patented wedge-mounting system for fast, screw-free installation and easy maintenance. The panel is designed to work with the Holme control unit to create a complete VoIP call panel, with a high-quality 15 W speaker and noise and echo cancellation for clear communication.

Approvals

  • EN 50121-4:2016A 1:2019 – Railway Applications
  • EN 55032:2015 AC:2016,
  • EN 55035:2017 AC:2019 – Electromagnetic compatibility of multimedia equipment
  • EN 60529 – IP65 ingress protection
  • EN 62262:2002 – IK09 impact protection

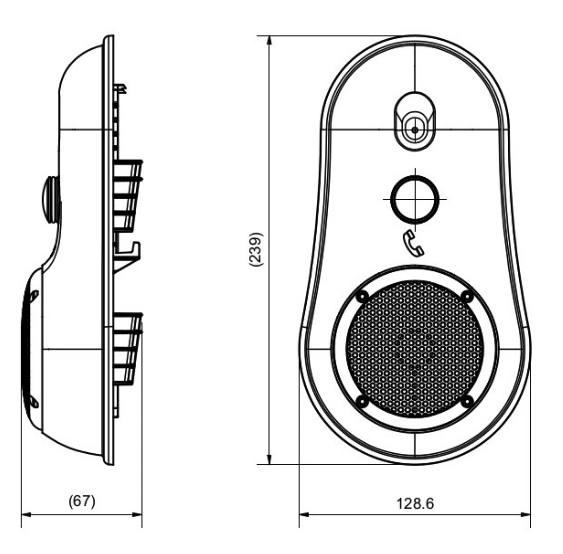

Dimensions

Protected by patents US 11193629, NO 347751

‍

Technical Specifications

Protection rating
Operating temperature
Housing
Connectivity
Audio
Sound quality
Display
Beacon
Network management
Mounting
Keypad
Certification
IP65*
-25°C to +65°C
Polycarbonate
Terminal plugs
MEMS microphone
Clear & loud audio
Not applicable
Not applicable
Via Holme control unit
Patented wedge mounting
Not applicable
EN 50121-4 / EMC / IK09

Documentation

Integration & Connectivity

Vik is designed to work with the Norphonic Holme control unit, creating a complete VoIP call panel for a wide range of applications.

Blue check mark symbol indicating confirmation or approval.

Holme Integration

Combines with the Holme control unit to provide VoIP call functionality.

Blue check mark symbol indicating confirmation or approval.

Easy Installation

Patented wedge-mounting system enables fast installation without screws.

Blue check mark symbol indicating confirmation or approval.

Panel Connection

Terminal connections provide direct connection for the call button, speaker and microphone.
